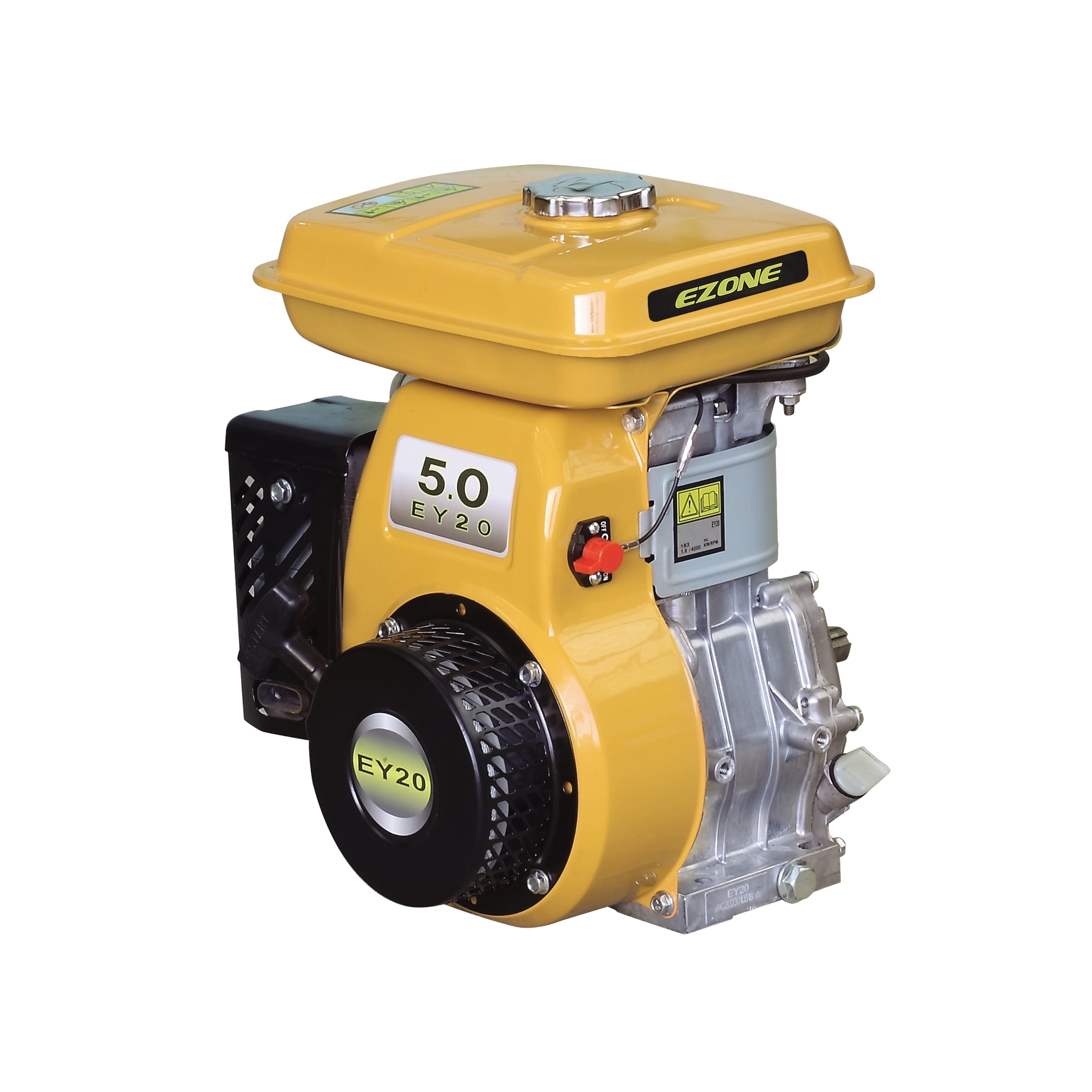

Model | EY20 |
Max output | 5.5HP/4000rpm |
Engine Type | Single -cylinder ,4-stroke,Air-cooled,OHV |
Rated power/spdde | 3.5kW/3600rpm |
Max Torque | 2.65N.m/3600rpm |
Fuel tank capacity | 3.8L |
Fuel consumpotion | ≤230g/kW.h |
Oil capacity | 0.6L |
Min.Stable Speed Unloaded | 3600rpm |
Reduction Ration | 2:1 |
Bore×Stroke | 67×52mm |
Displacement | 183cc |
Compression | 8.5:1 |
Starting System | Recoil Start |
lgnition System | Transisterized Magnto lgnition |
N.W/G.W | 15kgs/16kgs |
CTN Size | 330×320×395mm |
Loading | 595pcs/20GP |
