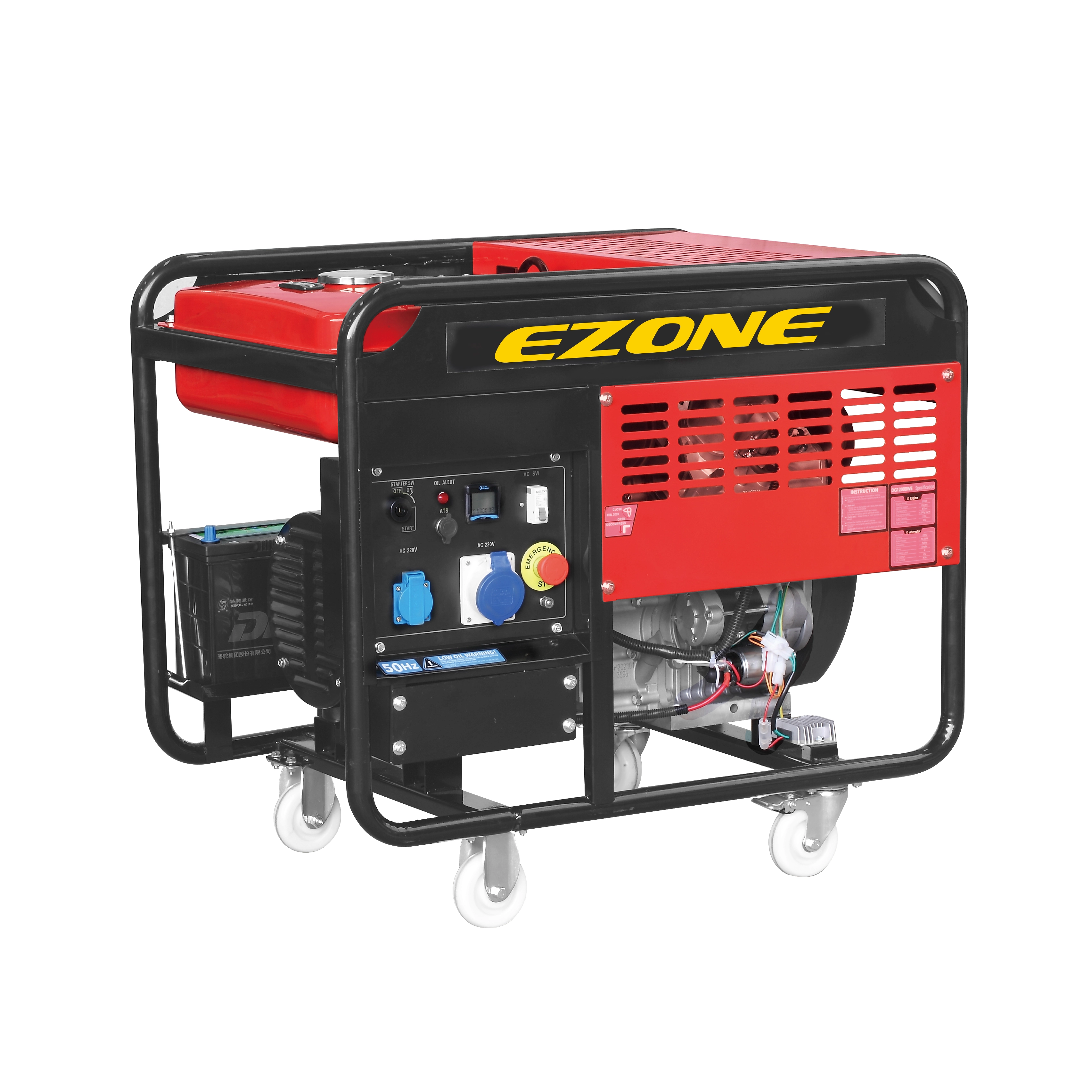

EZ-10000DE/EZ-13000DE/EZ-16000DE/EZ-17000DE/EZ-18000DE
| Availability: | |
|---|---|
| Quantity: | |
| Model | EZ-10000DE | EZ-13000DE | EZ-16000DE | EZ-17000DE | EZ-18000DE |
| Rated Output | 8.8KW | 9.0KW | 11.0KW | 11.5KW | 15.0KW |
| Max.Output | 9.8KW | 10.0KW | 12.0KW | 12.5KW | 16.0KW |
| Voltage | 110V/220V/380V | ||||
| Frequency | 50Hz/60HZ | ||||
| Engine Model | 2V80 | 2V88 | 292 | 2V92 | 2V95 |
| Engine Type | Two-cylinder, V-twin, Water-cooled, Four stroke, Direct injection | ||||
| Cylinder NO.-bore×stroke | 2-80×79mm | 2-88×72mm | 2-92×75mm | 2-92×72mm | 2-95×75mm |
| Displacement | 794cc | 870cc | 996cc | 997cc | 1247cc |
| Rated power | 12.0/3000kW(r/min) | 13.0/3000kW(r/min) | 13.5/3000kW(r/min) | 15/3000kW(r/min) | 19/3000kW(r/min) |
| Compression ratio | 19:1 | 19:1 | 19:1 | 20:1 | 20:1 |
| Rated rotation speed | 3000rpm/3600rpm | ||||
| Lubrication system | Pressure splashed | ||||
| Starting system | Electric starter | ||||
| Lube capacity | 2.27L | 2.3L | 2.75L | 3.8L | 4.0L |
| Battery capacity | 12/36Ah | 12/36Ah | 12/36Ah | 12/36Ah | 12/45Ah |
| Fuel consumption | 245g/kw. h | 245g/kw. h | 245g/kw. h | 245g/kw. h | 245g/kw. h |
| Fuel tank capacity | 25L | 25L | 25L | 25L | 25L |
| Continuous running time | 7hr | 7hr | 6hr | 5.5hr | 4.5hr |
| Package size | 1150×770×900mm | 850×620×610mm | 980×680×800mm | 900×700×790mm | 940×700×790mm |
| Gross weight | 230kg | 215kg | 240kg | 235kg | 240kg |
| Loading | 60pcs/40HQ | 196pcs/40HQ | 99pcs/40HQ | 126pcs/40HQ | 108pcs/40HQ |
