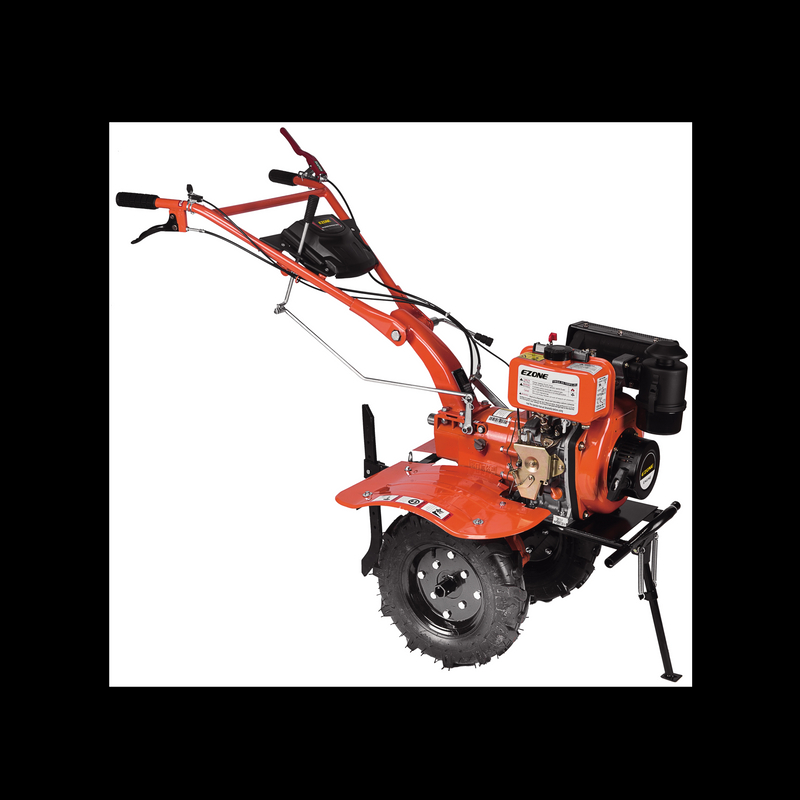

Diesel Engine Tiller
Product Description
NameDiesel Engine Tiller
ModelGT-173GT-178GT-186
Engine Type173F178F186F
Ratde Rpm3600r/min
 Rated output4.05kW4.0kW6.5kW
Transmissioin typeGearGearGear
Clutch typeFriction Piate ClutchFriction Piate ClutchFriction Piate Clutch
Output SpeedS:93r/min/F:130r/minS:83r/min/F:145r/minS:83r/min/F:145r/min
Net weight78kg97kg110kg
Tillage width

1000mm

1100mm1350mm
Tillage depth≥100mm≥100mm≥100mm
Working speed0.1m/s~0.3m/s0.1m/s~0.3m/s0.1m/s~0.3m/s
Working efficiency≥0.04hm2/h.m≥0.04hm2/h.m≥0.04hm2/h.m
Fuel consumption≤30kg/hm2≤30kg/hm2≤30kg/hm2
CTN Size1680×1000×800mm1740×1100×800mm1740×1100×800mm
N.W/G.W74kgs/88kgs92kgs/109kgs105.5/122kgs
Loading144pcs/40HQ144pcs/40hQ144pcs/40hQ
